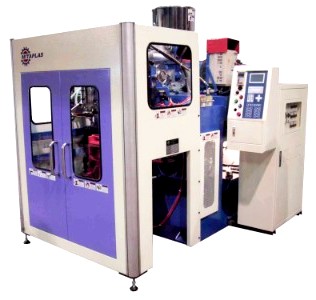

automatic blow molding machine

CONTINUOUS TYPE


MACHINE FEATURES
1. Advanced Computer Control with LCD display panel & with 99 sets of module memory for faster and easier production. Easy to learn and maintain. Machine Temperature setting, Mold Open/Close stroke, Pressure setting & Production time setting...etc, can be directly preset on the control panel and Monitoring by the computer.
2. Auto-Diagnosis and Alarm system- LCD screen will show the present movement, functions and control each running conditions during production. The 3 level password protection can avoid any mistake caused by unauthorized modification and abnormal operation.
3. PID Temperature control system enables more precision (3C) temperature control. Limited lowest Temperature Setting Function can avoid extruder being injury by careless temperature setting.
4. Torpedo Design diehead enables smoothly parison flow and faster color changeover.
5. The Screw & Barrel are made of special steel with nitric treatment and hard chrome plated. Durable for long time working in high temperature and friction resistance. Excellent for continuous high speed extrusion.
6. Blow Pin Seat with six directions adjustment - for faster and easier centering the blow pin to the mold.
7. Mold Open/Close position is controlled by digital transducer. The operator can preset the mold close/open distance on the panel directly without manual adjusting the limit switches when a new mold is mounted.
