MITA-TC
SERIALS ( TWO-COLOR )
|
|
|

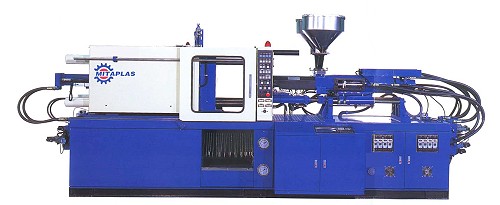

TWO-COLOR INJECTION MOLDING MACINE | ||
Specially designed for producting keyboards and marble-effect products. The machine fits independent TWO-COLOR INJECTION SYSTEM, and can also function for single-color injection. | ||
CLAMPING
UNIT
|
||
Clamping system uses horizontal and internal double-toggle mechanism, the which can shorten cycle-time. | ||
THE ROTATION SYSTEM OF TWO-COLOR MOLD, according to the different design construction of mold, two different models for the rotation system of movable-mold can be selected, ROTATING-PLATE DESIGN and ROTATING-AXIS DESIGN. | ||
1.
|
ROTATING-PLATE DESIGN: | |
To rotate the complete movable-mold, and can bear the heavier complete movable-mold. | ||
2. | ROTATING-AXIS DESIGN: | |
To rotate the core of the movable-mold, and has advantages of light, speedy and precise fixing-position. | ||
TWO STANDARD MOLDING PROCESS: | ||
1. | Mold open end -->Middle ejector forward --> Mold rotation --> Middle ejector return -->Clamping close -->Robot | |
2. | Mold open end --> Ejector A B --> Middle ejector forward --> Robot --> Stop --> Middle ejector forward --> Mold rotation --> Middle ejector return --> Clamping close. | |
INJECTION
UNIT
|
||
A B nozzles are arranged in parallel horizontally, with the mold-rotation device on the movable platen, to reach the high precision of two-color injection. | ||
Two-color molds at on time, time-saving ensures the improvement of the business profitability. | ||
COMPUTER CONTROL UNIT |
||
Several ejector-method designs control. | ||
Easily correcting-program matches the molding process of different molds. | ||
Mold open/close stroke, A B barrel stroke are controlled by transducers. | ||
HYDRAULIC UNIT |
||
Two pumps, two proportional valves, and full-proportional hydraulic-loop control. | ||
Two-stage control of mold-rotation speed. | ||
The standard hydraulic-loop includes ejector A B, middle-ejector, and mold-rotation. | ||
