SEMI-AUTO PET REHEAT STRETCH BLOW MOULDING MACHINE |
PET-
2000

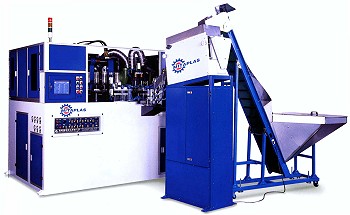

AUTOMATIC PET STRETCH BLOW MOULDING MACHINE |
This is a new generation of fully automatic and versatile machine for mass production of PET bottles and jars with volumes up to approximctely 200-6000ml. Ideally suitable for large scale factories and for applications where stringent quality requirements have to be met. Substantial reduction in operating cost is achieved by saving of manpower. |
FEATURES |
|
|
PREFORM IN-FEED AND UNSCRAMBLER | ||
Does orientation and delivery of preforms in an orderly fashion to the machine. Accurate position control of preform is achieved by 'double crank' design, eleminating the effect of expansion and contaction of chain. | ||
MOULD OPEN-CLOSE SYSTEM | ||
State of the art hydraulic system actuates the double cam lock to postition the mould quickly, smoothly and accurately. | ||
PREFORM HEATING | ||
Accurate temperature control of infrared heaters in various zones of the oven is achieved by electronic control. Rotation of preform holding mandrels enables the circumfrence of preform at each zone to be evenly heated. | ||
BOTTLE DISCHARGE SYSTEM | ||
Bi-axially oriented bottles from the moulds are picked up by robotic arms and placed in an up-right position on an optional in-line conveyor or leak testing systems. | ||
PREFORM CONVEYING SYSTEM | ||
Servomotor control makes delivery of preform to the mould very smooth and accurate. | ||
TOUCH SCREEN CONTROL SYSTEM | ||
Computer touch screen communicate with the PLC. All actions of the machine can be seen on the screen. System has 99 sets of memories. The system dignoses and displays the problems on the screen to make truoble shooting easier. | ||
PRODUCTION SAMPLES: | ||
|
||
