precision injection
molding machine
|

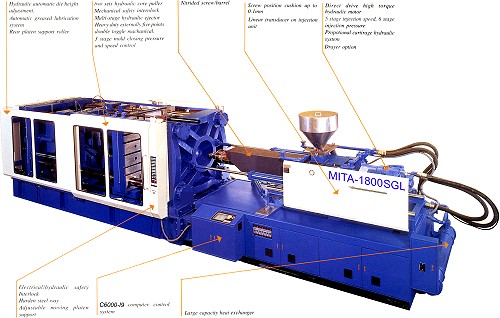

MITA-1600SGL~MITA-4000SGL
|
|
 |
 |
|||
 |
External five points double toggle system to avoid moving external five points double toggle system to avoid moving platen bending. | ||
|
Hight rigid plated design. | ||
|
High pres. lubrication system. | ||
|
Moving plated suporter (roller type). | ||
|
Automatic mold high adjust device. | ||
|
Electrical / hyd. / mechanical safety inter lock. | ||
|
Modular construction for injection and clamping unit. | ||
|
High torque hyd. motor directly couping with charging screw. | ||
|
Inj. unit swivel device. | ||
|
Energy saving modular pump. | ||
|
Power match system. | ||
|
Reliable and firendly computer control system. | ||
 |
|||
|
CLAMPING
UNIT
|
|||
|
Heavy duty five points double toggle. | ||
|
3-stage mold opening pressure and speed control. | ||
|
Low pressure mold protection with adjustable pressure and time. | ||
|
Hydraulbic enector with stroke, time, pressure and speed control. | ||
|
Adjustable ejector out and in delay, ejector forward old. | ||
|
Air-blast ejector valve. | ||
|
Moving platen postion transducer. | ||
|
Hydraulic automatic mold high adjustment gear. | ||
|
Adjustable mold plated sliding pad with bearings. | ||
|
Automatic centralize grease lubrication system with alarm (above 1000sg). | ||
|
Harden steel pins and bushings. |  |
|
|
Harden steel way on clamp unit. | ||
|
Steel pipe and valve for cooling water. | ||
|
2 sets of core puller. | ||
|
Safety
gate with interlock. (mechanical/hydraulic/electrical) |
||
|
Automatic air control power door. | ||
|
INJECTION
UNIT
|
|||
|
Linear transducer screw position up to 0.1mm. |  |
|
|
Adjustable suck-back speed. | ||
|
5-stage programmable injection speed. | ||
|
4-stage programmable injection pressure. | ||
|
3-stage adjustable holding pressure. | ||
|
Holding pressure starts by stroke or time. | ||
|
Programmable holding pressure time. | ||
|
Srrue break on injection unit. | ||
|
Adustable nozzle approach speed and pressure. | ||
|
Screw cold start protection. | ||
|
Nitrided barrel and screw. | ||
|
High torque low RPM hydraulic motor. | ||
|
Direct drive hyd. screw motor | ||
|
Hydraulic swivel device for injection unit. | ||
|
Adjustable injection cushion with programmable or tolerance limit. | ||
|
Intrusion molding (flow molding). | ||
|
2 stages programmable plasticizing speed delayed plasticizing start. | ||
|
CONTROL
|
|||
|
Computer c6000. | ||
|
Crt display. | ||
|
Alphanumeric keysboard enter wtih manual controls. | ||
|
Storage of mold set-ups. | ||
|
Process and functional self-diagnosis. | ||
|
Shot counter for production quantity setting. | ||
|
Partial and total cycle time display. | ||
|
Heating management with control during preheaing and production. | ||
|
P.d. temp. control. |
||
|
HYDRAULIC
EJECTOR
|
|||
|
Proportional modular pumps with power match system. | ||
|
Proportional cartridge valve. |
||
|
Oil tank level and temp. alarm. | ||
|
Save energy hyd. circuit. | ||
|
OPTIONAL
EQUIPMENT
|
|||
|
Accumulator for injection unit. | ||
|
Special screw and barrel. | ||
|
3rd set of core puller. | ||
|
Movable hot runner temperature control unit. | ||
|
Air blast ejector valve. | ||
|
High mixing screw. | ||
|
Barrel support. | ||
|
Hopper dryer. | ||
|
Auto loader. | ||
|
Injection plateform and ladder unit. | ||
|
T slot mold platen. | ||
|
Extral speed for mold clamping. | ||
 |
|||
